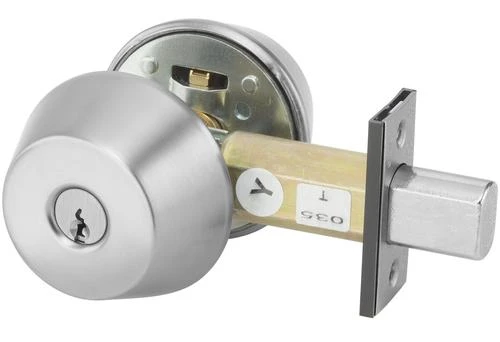

Yale 200 Series Satin Chrome Cylinder X Cylinder Door Deadbolt With Schlage C Keyway

Original price was: $90.00.Current price is: $65.70.

SKU: 1526884317388 Categories: Door Locks, Hardware

No-Questions-Asked Returns
Top-Notch Quality
Easy, Fast Returns Guarantee
Multiple safe payment methods

Yale D series deadbolts are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required. The D200 series is certified to ANSI/BHMA Grade 2 standards and is UL fire-listed for all functions ensuring reliability and peace of mind.

Brand Name: Yale

Features

Certified ANSI/BHMA A156.5 Grade 2.
1″ (25mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
UL-cUL Listed for use on fire doors having a rating up to and Including 3 hours.
Non-Handed, Field Reversible
Schlage C Keyway

Product Type	Deadbolt
Package Quantity	1
Shipping Dimensions	6.00 H x 6.00 W x 3.50 D
Weight	3 pound
Manufacturer Warranty	1 Year Mechanical year
Recommended Environment	Commercial, Office, Industrial
Maximum Door Thickness	1-3/4 inch
Minimum Door Thickness	1-3/8 inch
Maximum Backset Size	2-3/4 inch
Minimum Backset Size	2-3/4 inch
Strike Style	Square Corner
Strike Height	2-3/4 inch
Strike Width	1-1/8 inch
Application	Commercial
Includes	Mounting Hardware
Projection	1 inch
Color/Finish	Satin Chrome
Material	Steel, Zinc, Hardened Steel
Throw Length	1 inch
Housing Overall Height	1/2 inch
Listing Agency Standards	ANSI/BHMA A156.5
Housing Overall Width	1/2 inch
Overall Height	2-1/4 inch
Overall Depth	1 inch
Overall Width	2-1/4 inch
Cross Bore Diameter	1 inch
Bore Hole Diameter	2-1/8 inch
Door Handing	Universal
Number of Keys	2
Lock Type	Keyed
Style	Deadbolt
Shipping Weight	3.0 lbs
